Impedance Calculation

With Mindtek impedance calculator, you can calculate the approximate impedance of your PCB / high frequency circuit board. The surface finish is neglected. We recommend the software from Polar Instruments if you want to get exact impedance calculation.
Note: The results are only for approximation and rough estimation, the final values and the corresponding layer construction have to be calculated by us. The stackup information check here.
Instructions: Please select the value to be determined. You can then adjust the other parameters according to your needs.

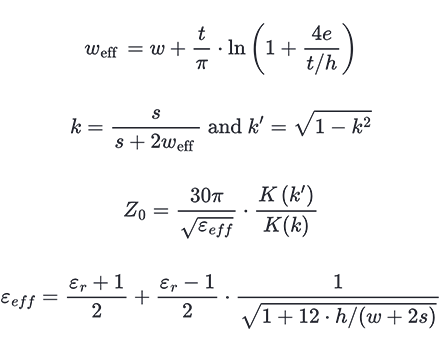

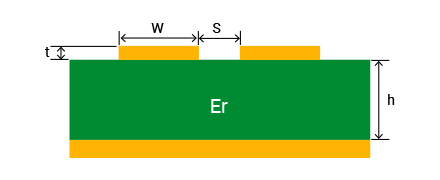

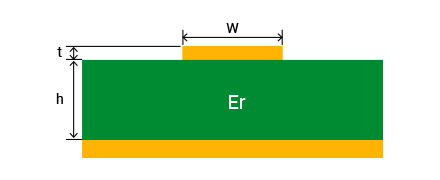

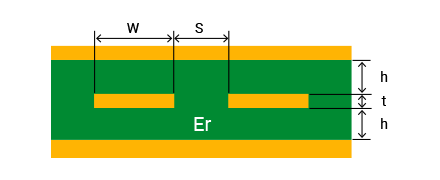

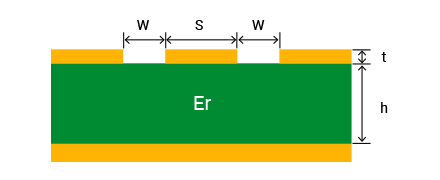

Note: For the three models — Microstrip, Edge Coupled, and Coplanar Waveguide, the outer layer impedance testing does not include the solder mask. If your design involves solder mask, we recommend using Shortcut to Si9000 software for calculation.
You may also contact your sales representative, who can provide you with the relevant impedance stack-up information.
